M70 Formwork Beams
Formwork that works.
Engineered for performance, durability, and safety, M70 Formwork Beams - Plus are designed to meet the demanding needs of modern construction. With superior load-bearing capacity and long-term reliability, they ensure efficient execution across all types of formwork applications.
WHY CHOOSE M70?
- Precision engineered using advanced Italian technology
- Solid core construction with no internal gaps

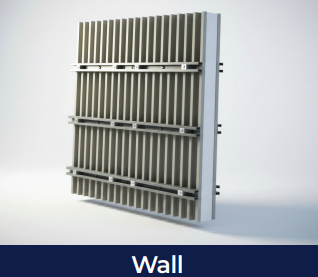

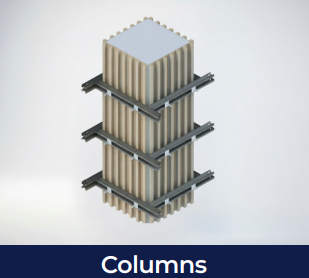

- Suitable for slabs, beams & columns
- High strength and durability
- Excellent reuse value
- Strong screw-holding capacity
- Moisture content below 5%
- High density (~600-700 kg/m³)
- 3-layer cross-battened structure
- Allowable concrete pressure 60kN/m
- Sizes of steel timber 1.2, 1.5, 1.8, 2.9, 3.0, 3,60m
- Weight per mtr: 3.6kg
Physical Properties
| Ultimate Moment Capacity | 3.5 kN-m |
|---|---|
| Ultimate Shear Strength | 8.0 kN |
Application Areas
