MS Scaffolding

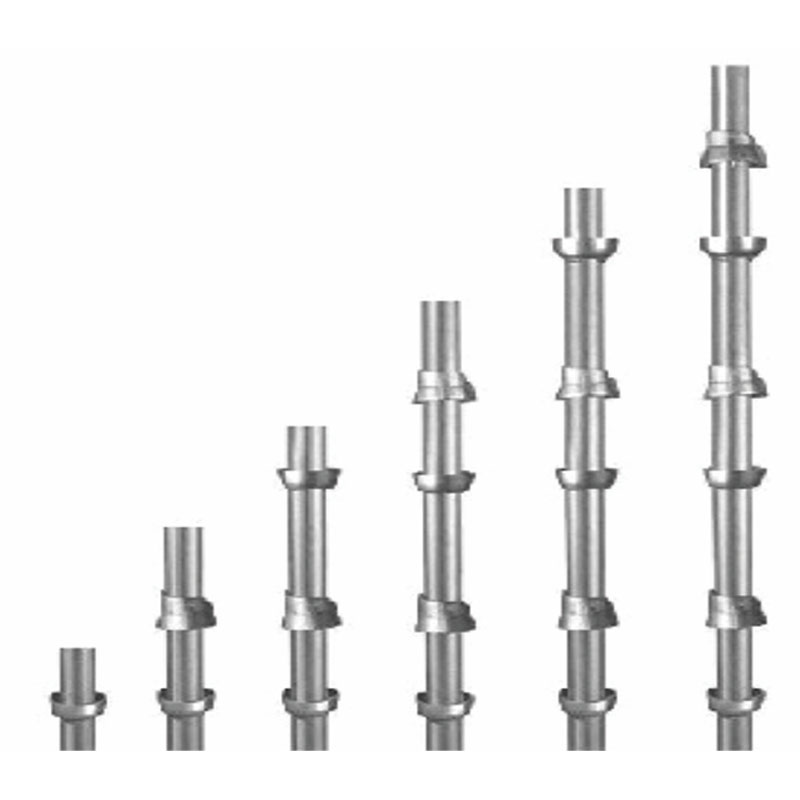

Vertical Standard
Standard Sizes & Weights
| Sizes | Weights |
|---|---|
| 3m (6 CUP) | 13.2 kgs |
| 2.5m (5 CUP) | 11 kgs |
| 2m (4 CUP) | 9.5 kgs |
| 1.5m (3 CUP) | 6.5 kgs |
| 1m (2 CUP) | 4.5 kgs |
| 0.5m (1 CUP) | 3 kgs |

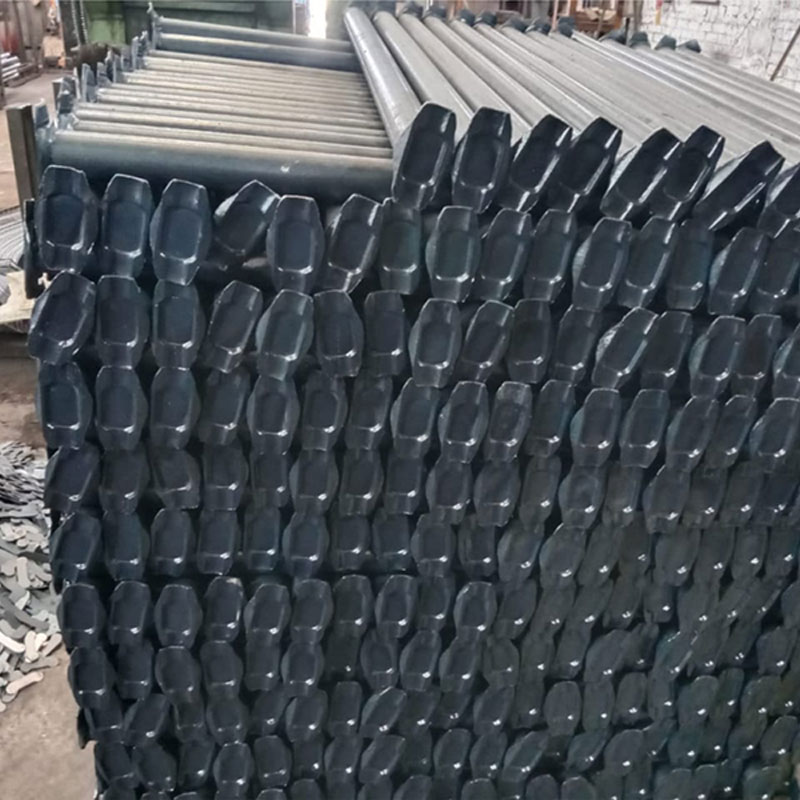

Horizontal Ledger
Standard Sizes & Weights
| Sizes | Weights |
|---|---|
| 2000 mm | 6.7 kgs |
| 1800 mm | 6 kgs |
| 1500 mm | 5 kgs |
| 1200 mm | 4 kgs |
| 1000 mm | 3.5 kgs |
| 915 mm | 3 kgs |

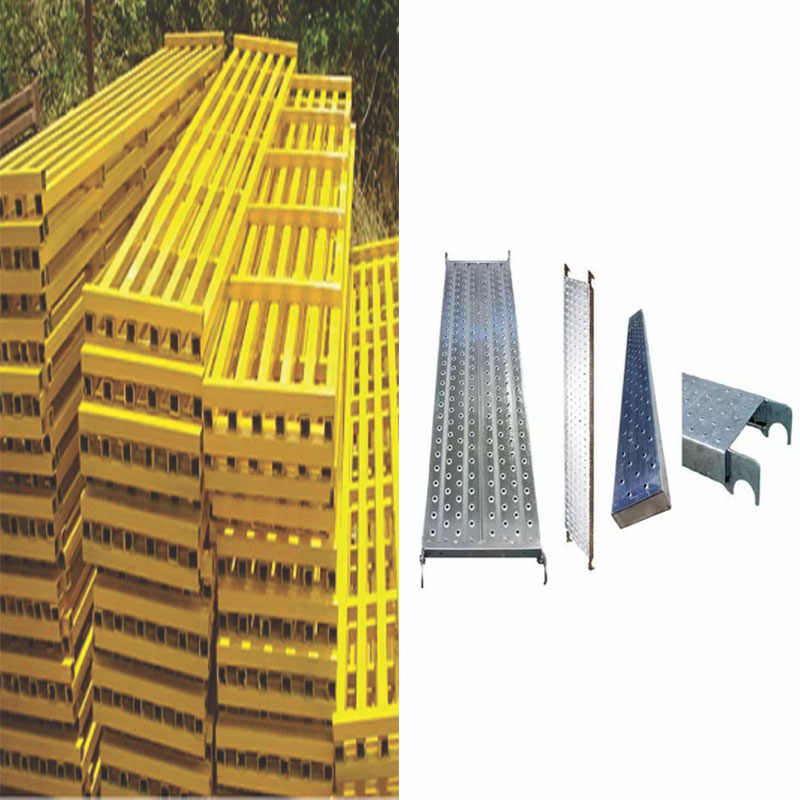

Walkway Plank / Challi
We offer Scaffolding Planks (Grating) — frameworks of parallel and crossed bars, also known as Challi/Jalli. Usually made of 25x25 / 20x20 M.S. Square pipes and 20 NB Round pipes. Available Size: 2m x 450mm (16kgs).
Standard gratings are available in Mild Steel or Stainless Steel. Panels can be self-colour or galvanized. Standard size 6m x 1m or 20' x 3', with 41mm x 100mm or 30mm x 100mm pitch.

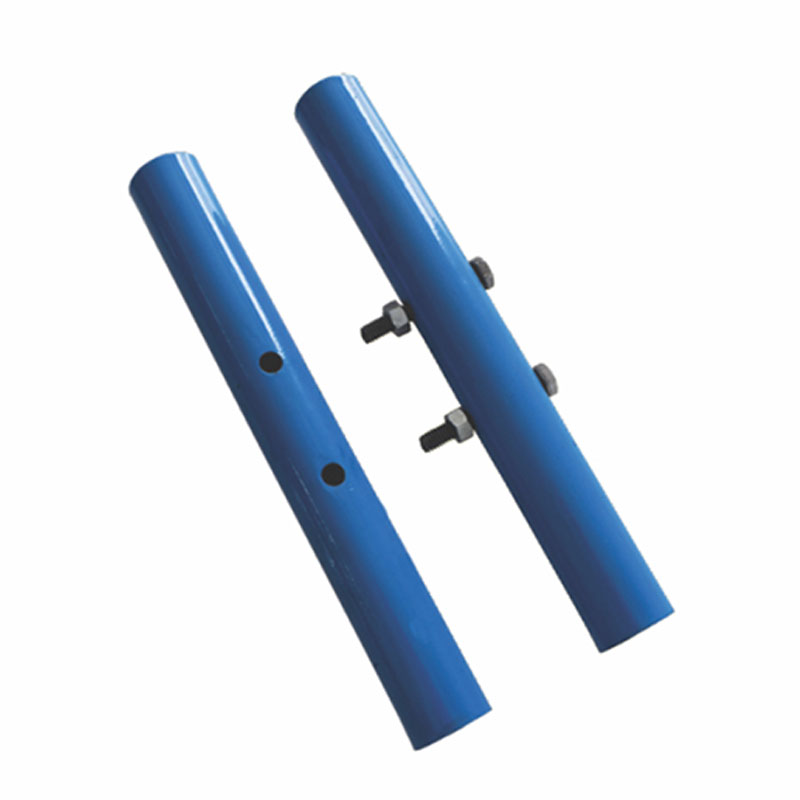

Spigot Pin
Made out of 300/250 mm long round tube. Used for connecting Cuplock Standards vertically. Usable in both Ring Lock and Cup Lock Systems. Join Pin made from finest raw material and fitted with screws for secure grip.

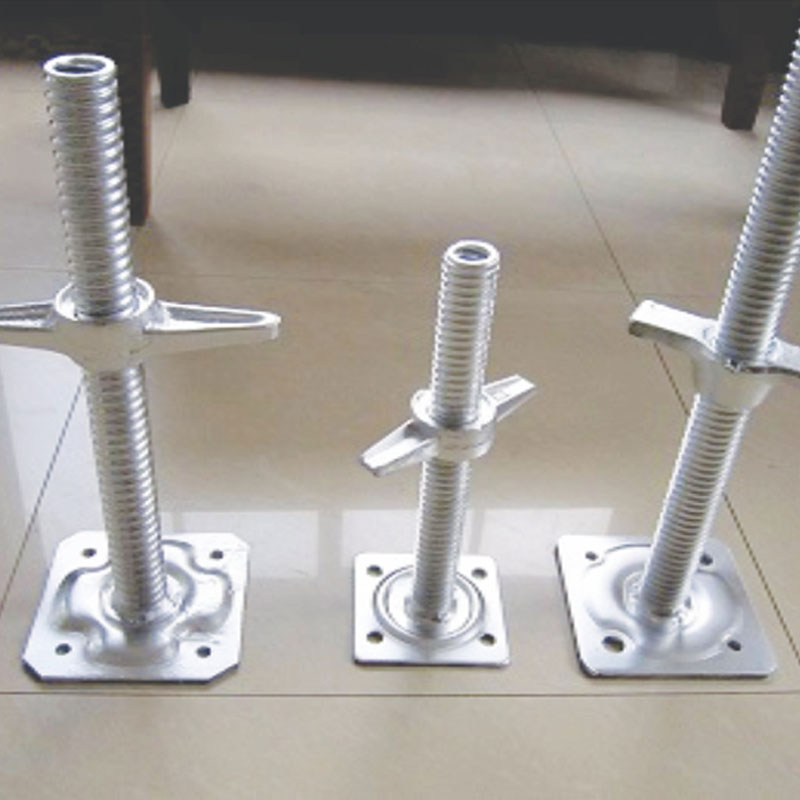

Base Jack
Adjustable Base Jack
Used with all scaffold systems. Made of 4mm thick pipe, 38mm OD, with threading via rolling machine. Ensures minimum 150mm engagement. Available as:
- 38mm hollow rod with base plate 150x150x6
- 32mm solid rod with base plate 150x150x6

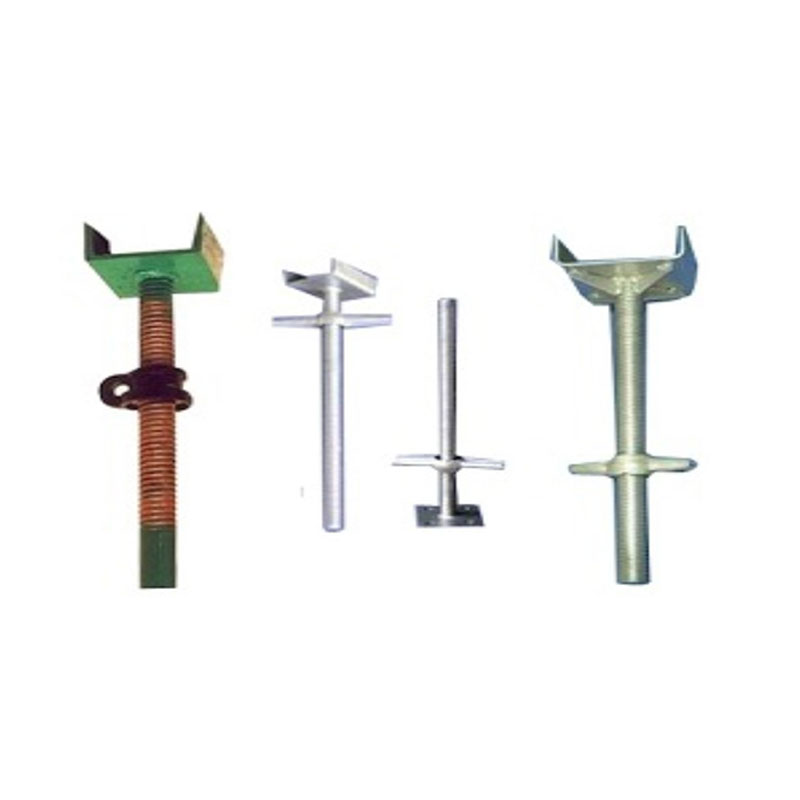

U Jack
Adjustable U-Head / Stirrup Head
Used in scaffolding and formwork systems. 38mm hollow stem with nut restraint for 150mm engagement. Capable of accepting twin 100mm wide bearers.

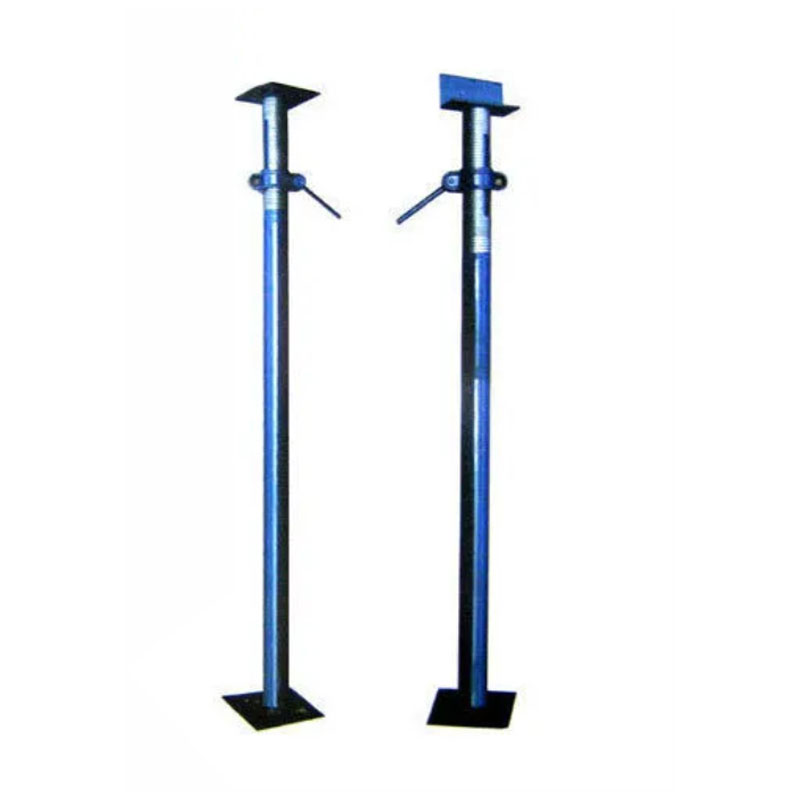

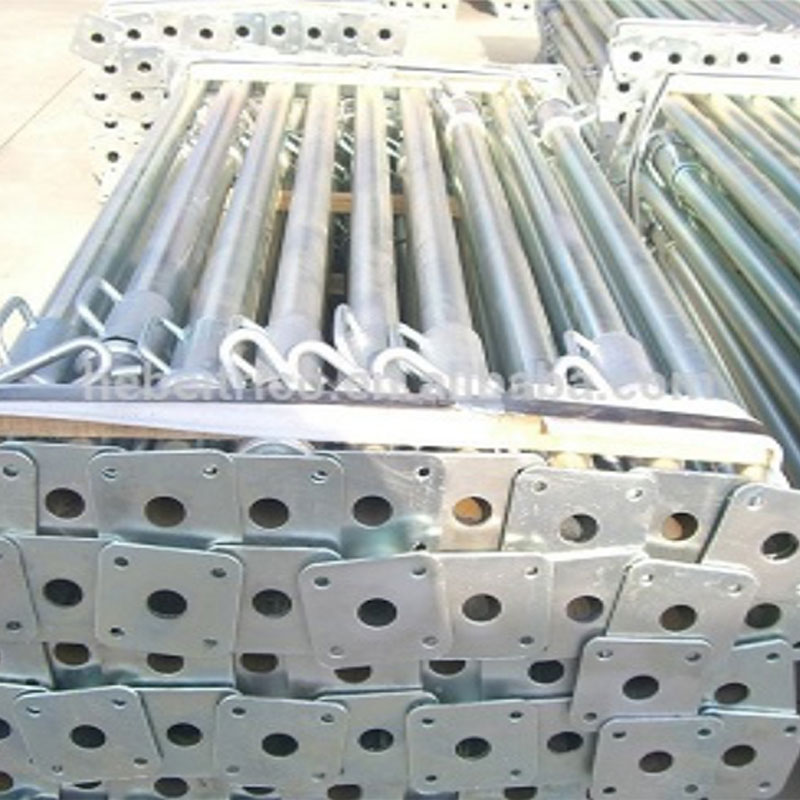

Adjustable Prop Jack
Outer prop OD 60mm, inner OD 48.3mm. Bracing required beyond 3.6m height. Provided with bolting and nail holes on base & head plates.
Standard Sizes & Weights
| Sizes | Weights |
|---|---|
| 2 + 2 m | 17.5 kgs |
| 2 + 3 m | 20.5 kgs |
| 3 + 3 m | 25 kgs |

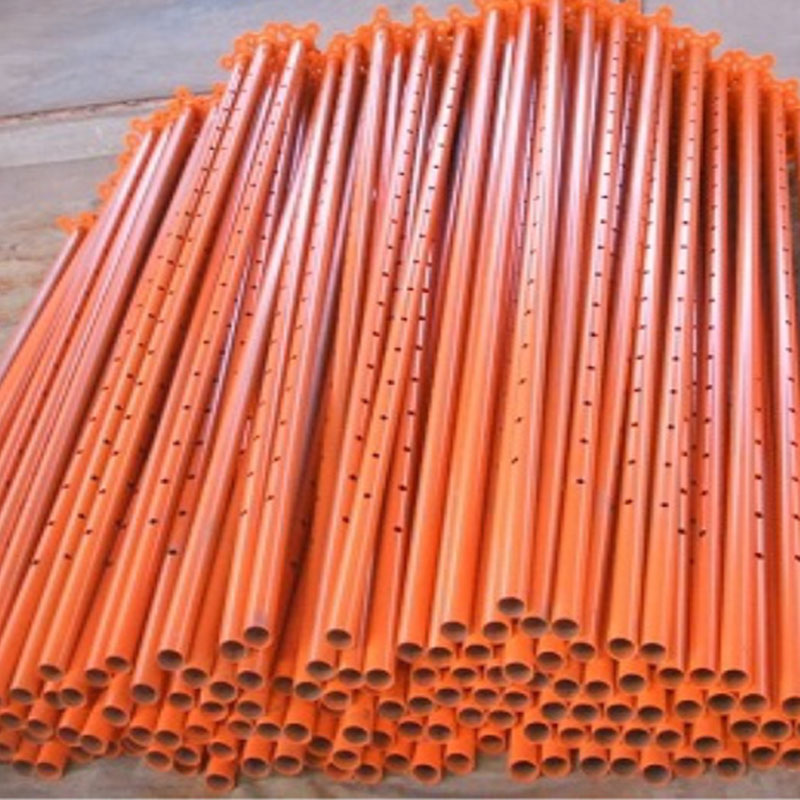

Inner Prop
Adjustable Inner Steel Props are used in civil and construction projects. Made with high-quality steel using advanced fabrication under expert supervision.
Outter Prop
Precisely designed for bi-directional force tolerance. Manufactured using premium steel sourced from reliable vendors, ensuring durability and compliance with industry standards.

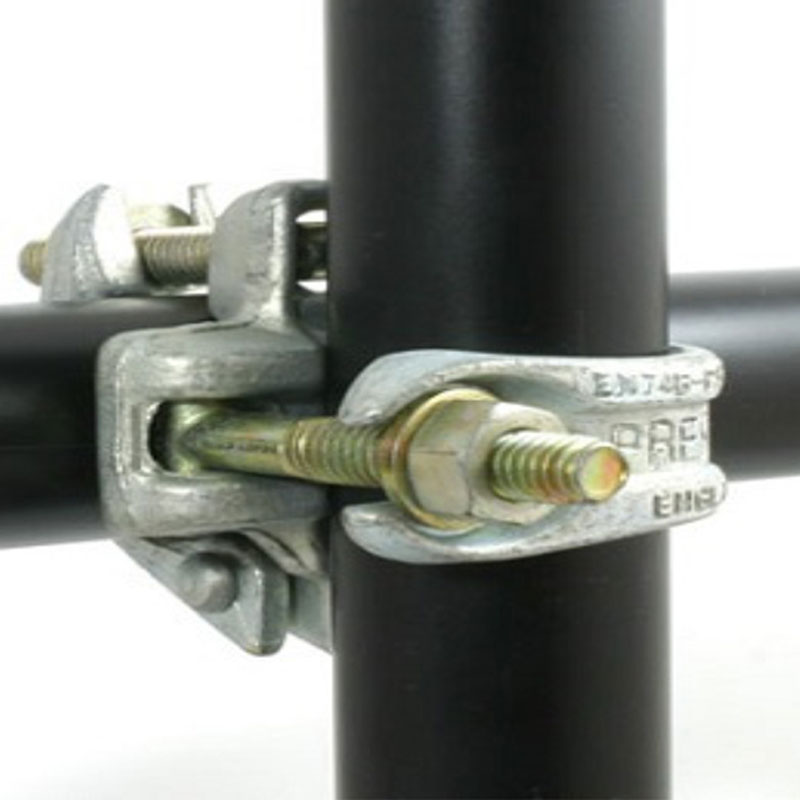

Fixed / Right Angle Clamp
Used for secure connection of scaffold tubes. Weight: 1.02 kg. Min Slip Load: 15kN. Min Distortion Load: 30kN. Zinc or powder-coated finish.

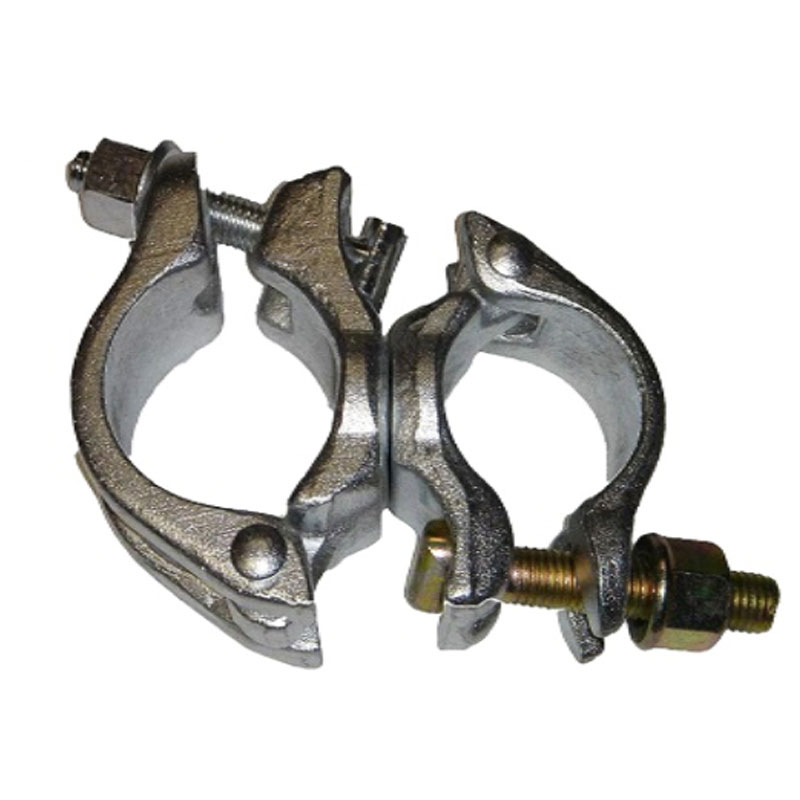

Swivel /Round Clamp
Enables tubes to be connected at any angle. Ideal for cross-bracing. Weight: 1.20 kg. Slip Load: 8.5kN. Distortion Load: 17kN. Zinc or powder-coated finish.

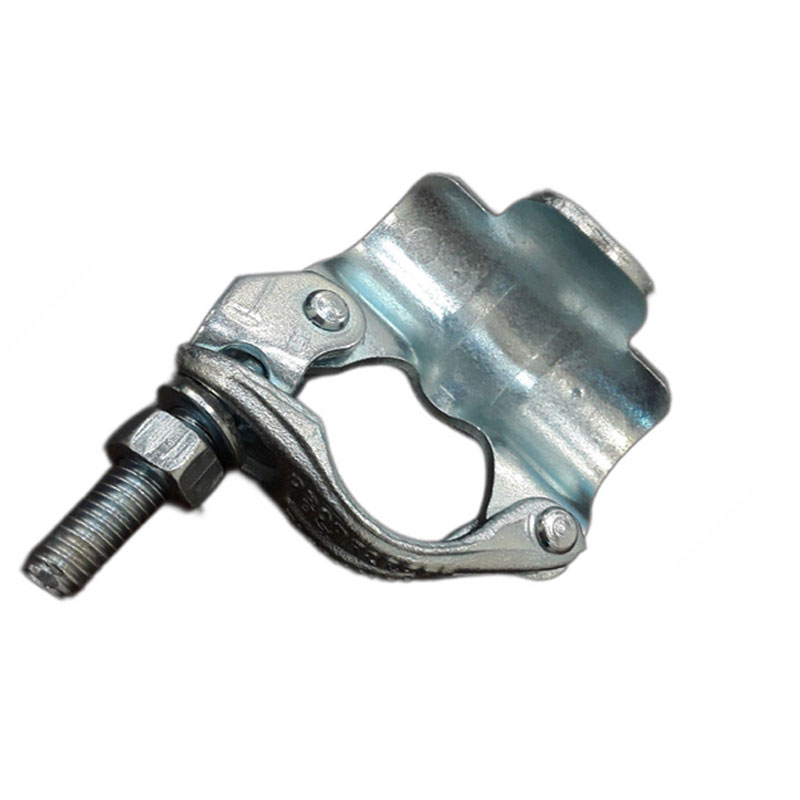

Putlog Clamp
Used for safe securement of scaffold tubes. Weight: 0.65 kg. Plated or powder-coated finish. Minimum slip load 1.20kN. Zinc finish available.

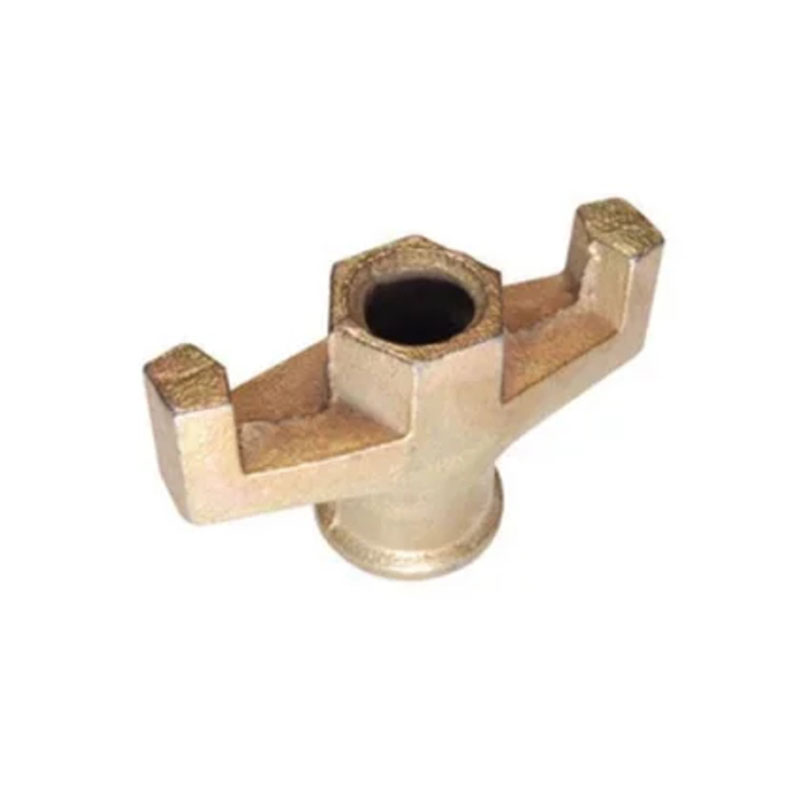

Wing Nut
Wing nuts have internal threading for easy installation and removal. Weight: 0.280 kg.

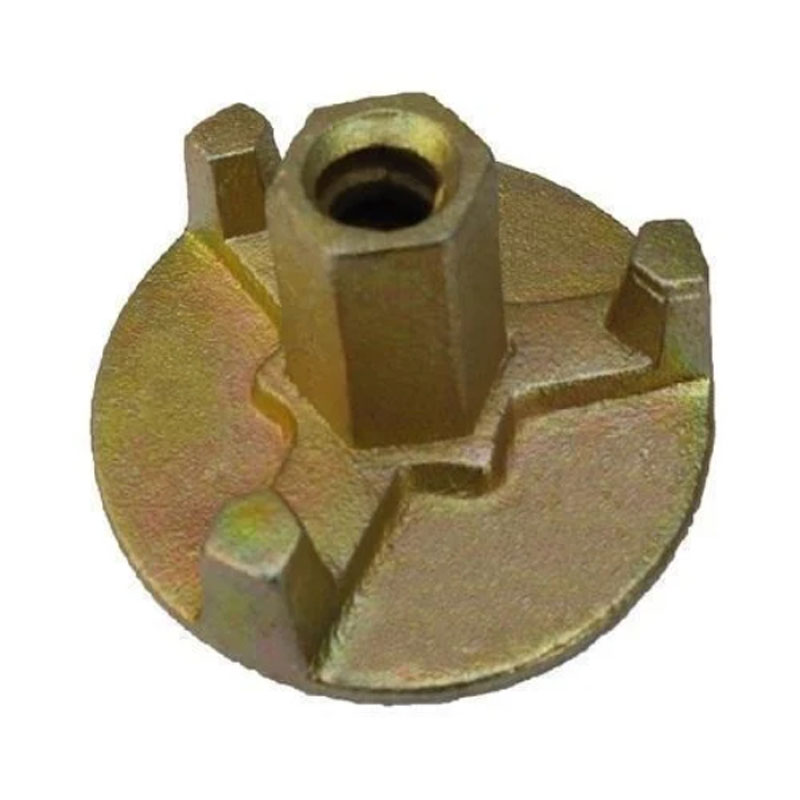

Anchor Nut
Anchor nuts provide a permanent nut element on the inside of joints, allowing attachment with screws. Used for access panels, fairings, and structural members.

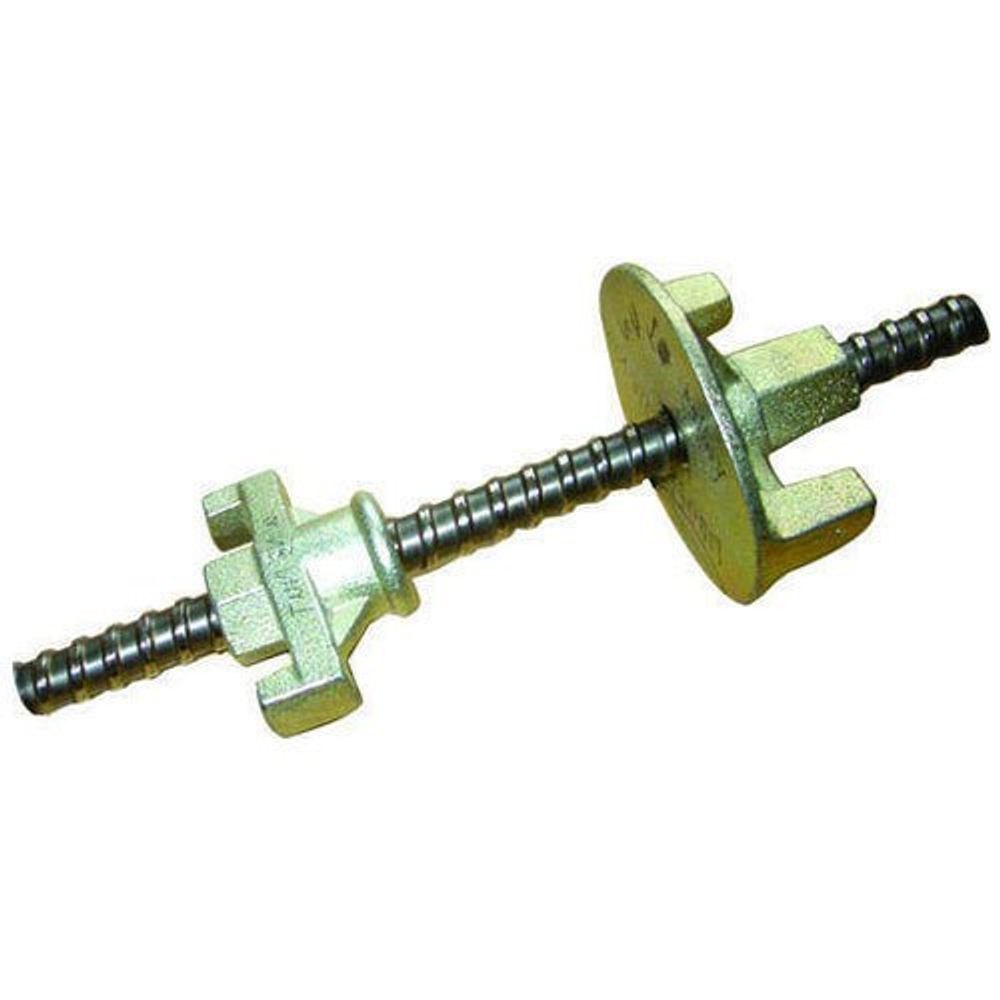

Tie Rod
Tie Rod with wing nut and anchor plate. Available in 10/12 mm, 15/17mm, and 20/22mm. Wing nut weight: 0.28 kg, Anchor nut weight: 0.66 kg.

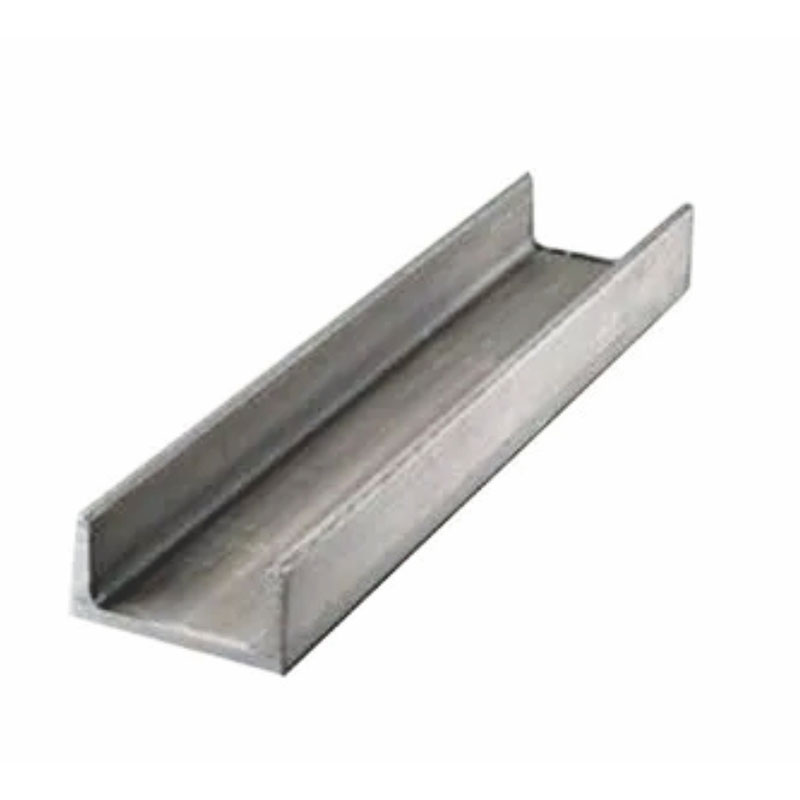

ISMC Channels
ISMC (Indian Standard Medium Channel) supports building structures during construction. Designed for heavy-duty performance, endurance, and weather resistance.
Standard Sizes & Weights
| Height (ft) | Weight (kg) |
|---|---|
| 8 | 18.4 |
| 9 | 20.7 |
| 10 | 23 |
| 20 | 52 |
