Home / ALUMINIUM SCAFFOLDING / MSAFE FIT NARROW SCAFFOLDING (MN)

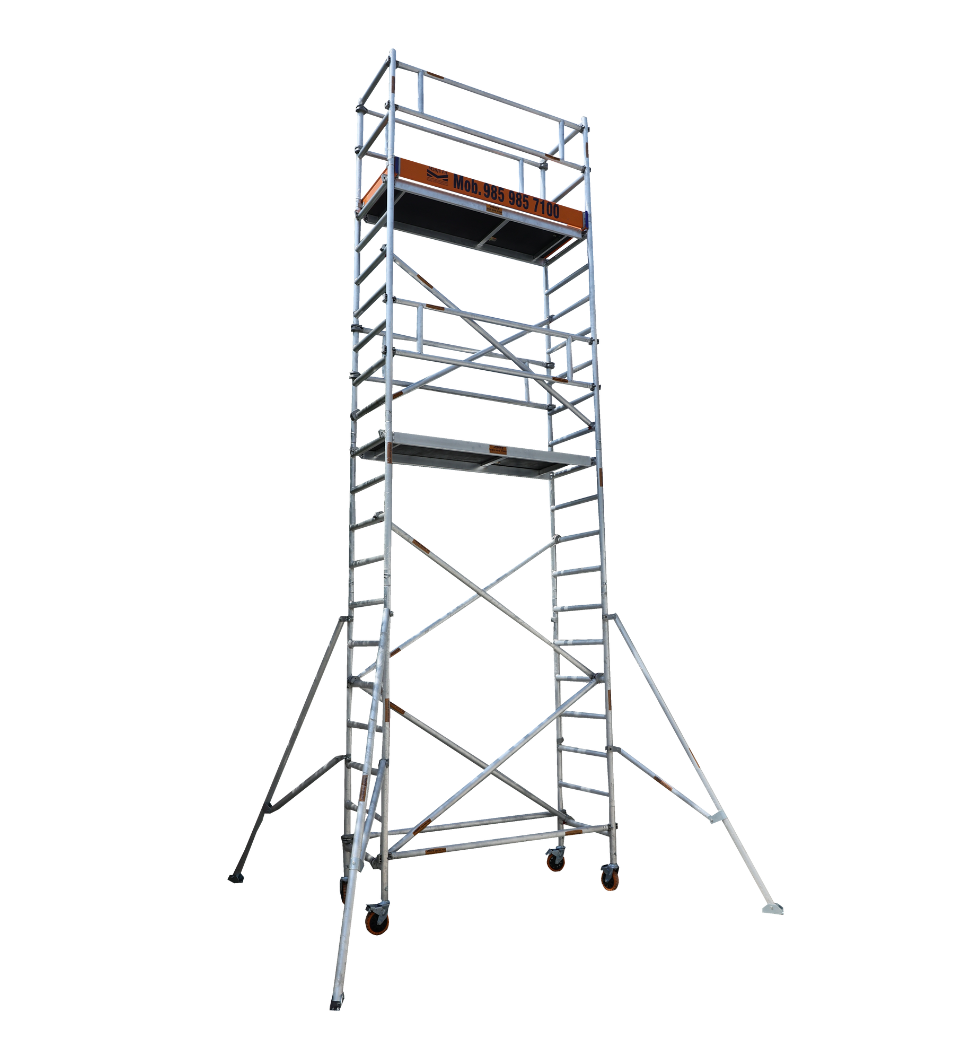

MSafe Fit Narrow Scaffolding version is a safe, comfortable mobile scaffold tower. It can be used to reach narrow and difficult work places.
STANDARD FEATURES

Scaffolding Width: 0.75m, Length: 1.80 m.
Working height can be extended from 4.2 m to max. 13.5m.
200 kg/m² loading capacity, i.e. depending on platform size from 270 kg to max 810 kg.
The free standing height for scaffold is 12.3 m indoor and 8.3 m outdoor as per safety norms.
Monkey climbing arrangements.

Detailed technical specifications for MSAFE FIT NARROW SCAFFOLDING (MN).

♦Scaffold Width: 1.35 m

♦Scaffold Length: 1.80 m

♦Working Height Range: 4.4 m – 18.4 m

♦Load Capacity: 200 kg/m²

♦Material: Premium Aluminium Alloy

♦Platform Type: Anti-Slip Stairway Stepping

♦Free Standing Height (Indoor): 12.4 m

♦Free Standing Height (Outdoor): 8.4 m

♦Safety Standard: EN 1004:2004 Compliant

Product gallery and application showcases.

Built with Uncompromising Safety

Every MSAFE system is engineered to exceed international safety norms and worker security standards.

High-Grade Aluminium Alloy

Lightweight 6061-T6 structural alloy delivers high tensile strength without adding excess structural weight.

Anti-Slip Rung Surface

Deeply ribbed rungs and non-skid platform trapdoors provide maximum traction even in wet conditions.

Lockable Swivel Castors

Heavy-duty polyurethane wheels feature dual-action foot brakes that lock both wheel rotation and swivel direction.

Tool-Free Assembly

Spring-loaded automatic locking pins enable effortless frame connection without spanners or loose bolts.

EN 1004 Certified

Third-party certified by leading testing agencies to comply with European and Indian scaffolding codes.

Heavy Load Capacity

Sturdily braced framework engineered to safely support 200 kg/m² point loads and multiple workers.

Frequently Asked Questions

Everything you need to know about MSAFE FIT NARROW SCAFFOLDING (MN)

MSAFE FIT NARROW SCAFFOLDING (MN) can be built up to a maximum working height of 18.4 meters outdoors and 12.4 meters indoors when properly stabilized with outriggers and tie-ins.

Yes! Our automatic locking trigger pins snap firmly into position and cannot be dislodged accidentally. They eliminate human error during tight bolted connections.

Absolutely. MSAFE offers flexible daily, weekly and monthly rental packages with prompt delivery across 21+ depot locations in India.

Need Custom Dimensions or Bulk Rental?

Speak to an MSAFE access engineer to customize your scaffolding configuration.

Done.

Model No.	MN028
No. of Step + Platform	-
Platform Height (Ft.)	2.2
Ladder Height (Ft.)	2.8
Working Height (Ft.)	4.2
Price	₹42,006
